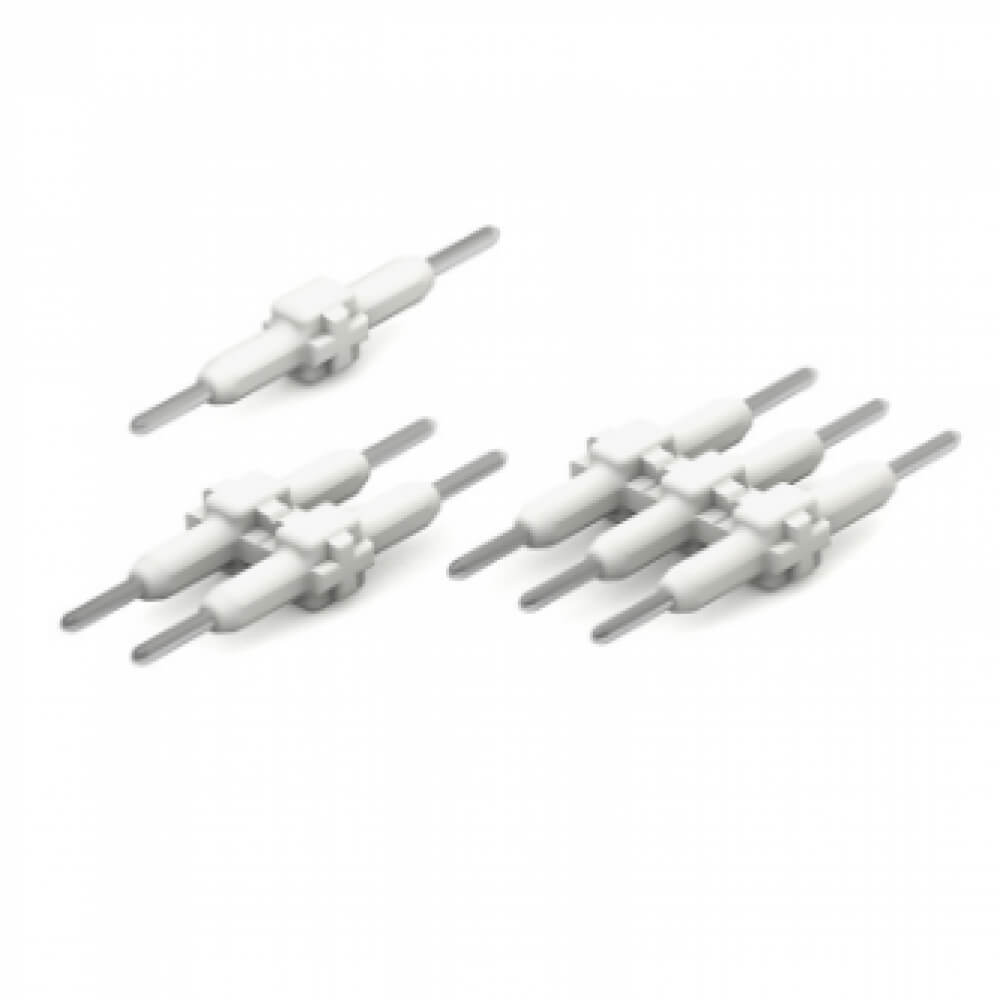

3 Kutuplu Kuplaj Aparatı

Teknik Detaylar

Name	Value	Unit
No. of poles	3
Total number of potentials	3
Pin spacing	3 mm (0.118 in)
Width	8.7 mm / 0.343 in
Height	2.5 mm / 0.098 in
Depth	15.3 mm / 0.602 in
Color	white
Material group	I
Insulating material	Polyamide 66 (PA 66)
Flammability class per UL94	V0
Contact material	Copper alloy
Contact plating	silver-plated
Fire load [MJ]	0.002	MJ
Weight [g]	0.19	g
Limit temperature range	-60 … 105 °C
Packaging type	BOX
[mm]	8.7	mm
Pin spacing from [in]	0.118	in
Pin spacing from [mm]	3	mm

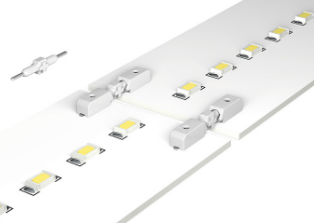

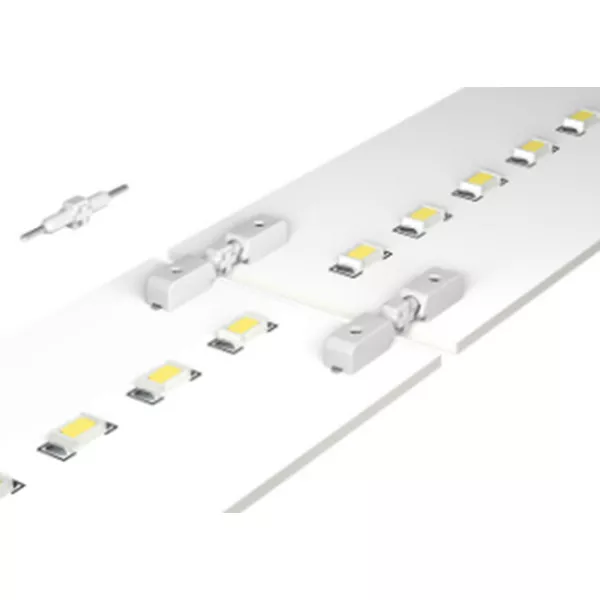

Main product function	Board-to-Board Link
Product type	Accessories
Suitable	for SMD PCB terminal blocks with push-buttons
